01 — Primary configuration
[ Converter front end ]

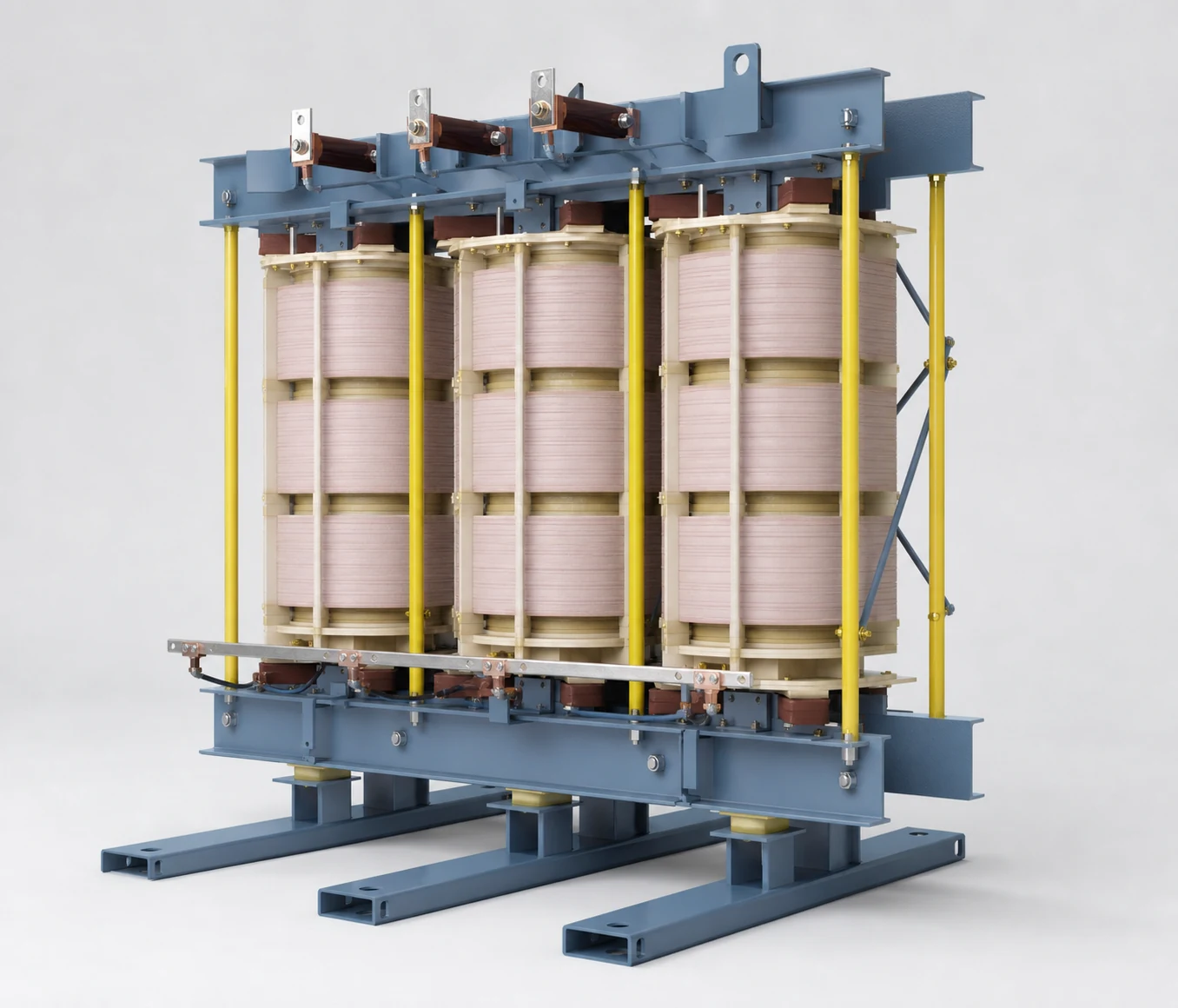

Dry Rectifier Transformers
Designed around harmonics. Built for conversion duty.
[ WHAT IT DELIVERS ]
A multi-pulse power foundation for rectifier and drive systems
Both product photographs on the reference cp2 page belong to dry rectifier transformers; they show different winding and structural arrangements, not two separate product categories.

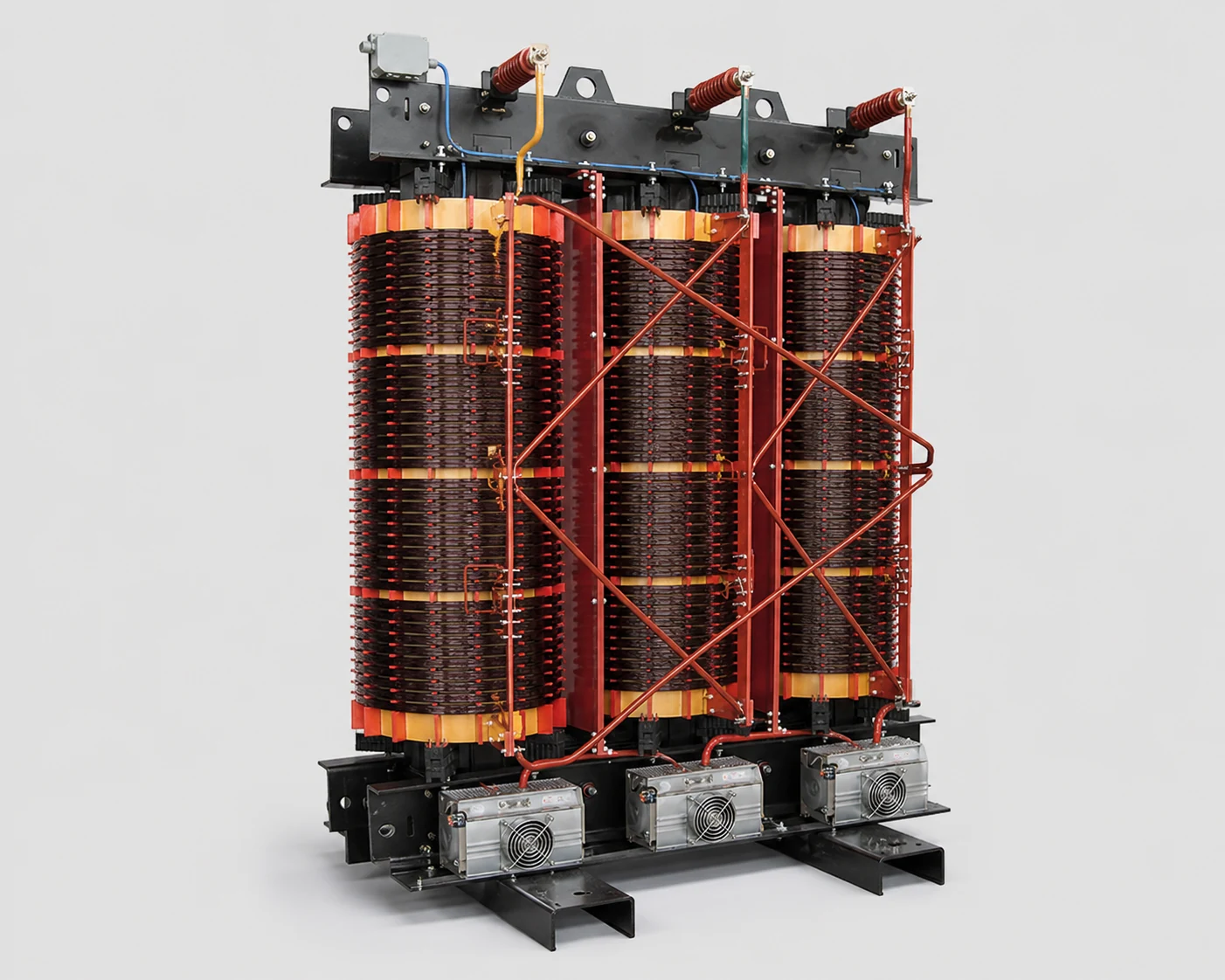

12Base pulse arrangement
24Multi-winding arrangement
36High-pulse configuration
[ PLATFORM OVERVIEW ]
Harmonics belong in the transformer design
Both product photographs on the reference cp2 page belong to dry rectifier transformers; they show different winding and structural arrangements, not two separate product categories.
Capacity, voltage, insulation, cooling, controls, protection, and interfaces are confirmed against project requirements before manufacture.
[ CONFIGURATIONS ]
02 — Alternative configuration

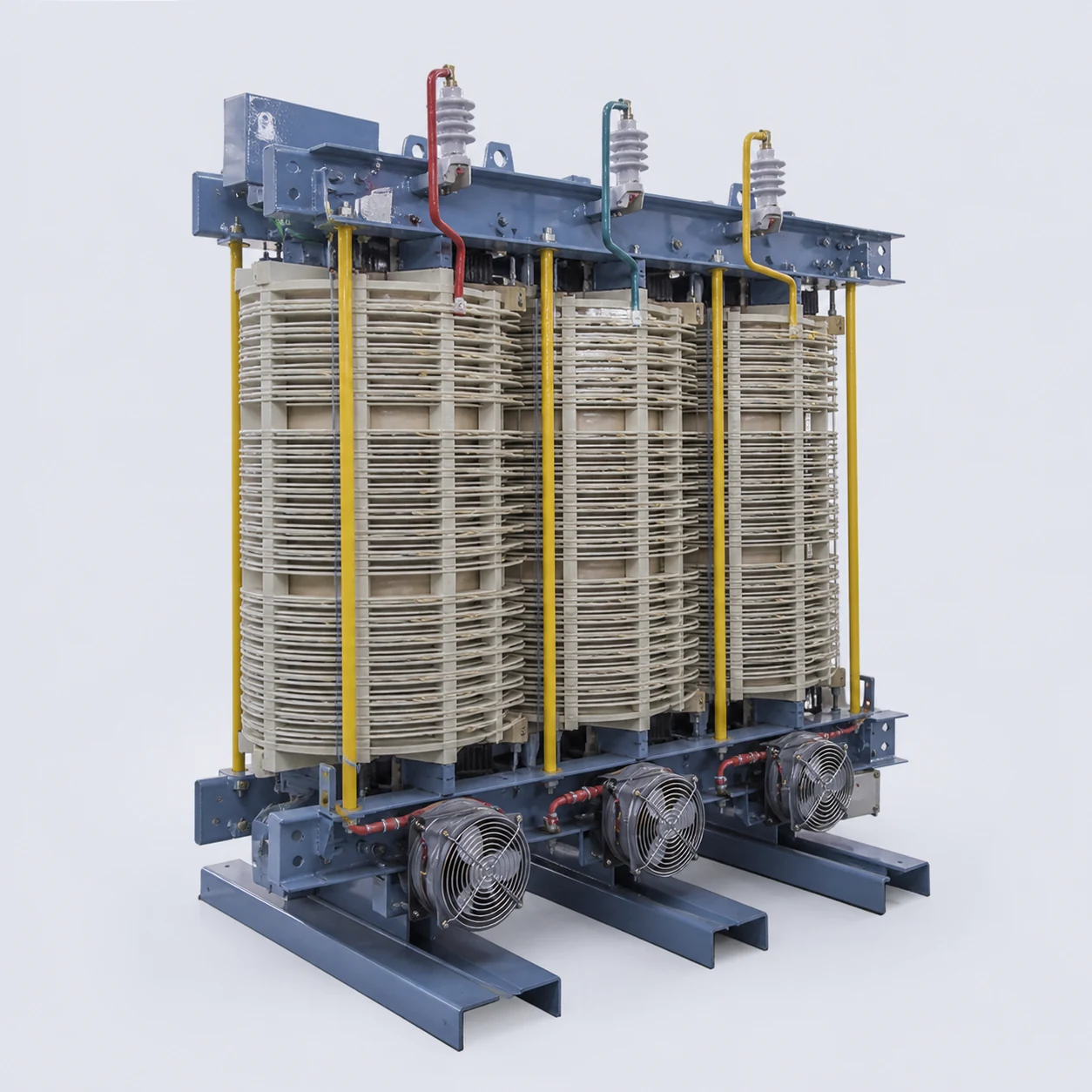

NOMEX and VPI construction
An alternative configuration for different regulation, insulation, control, cooling, or protection requirements.[ SPECIFICATIONS ]
Product Specifications
Application工业整流、变频与受控直流系统

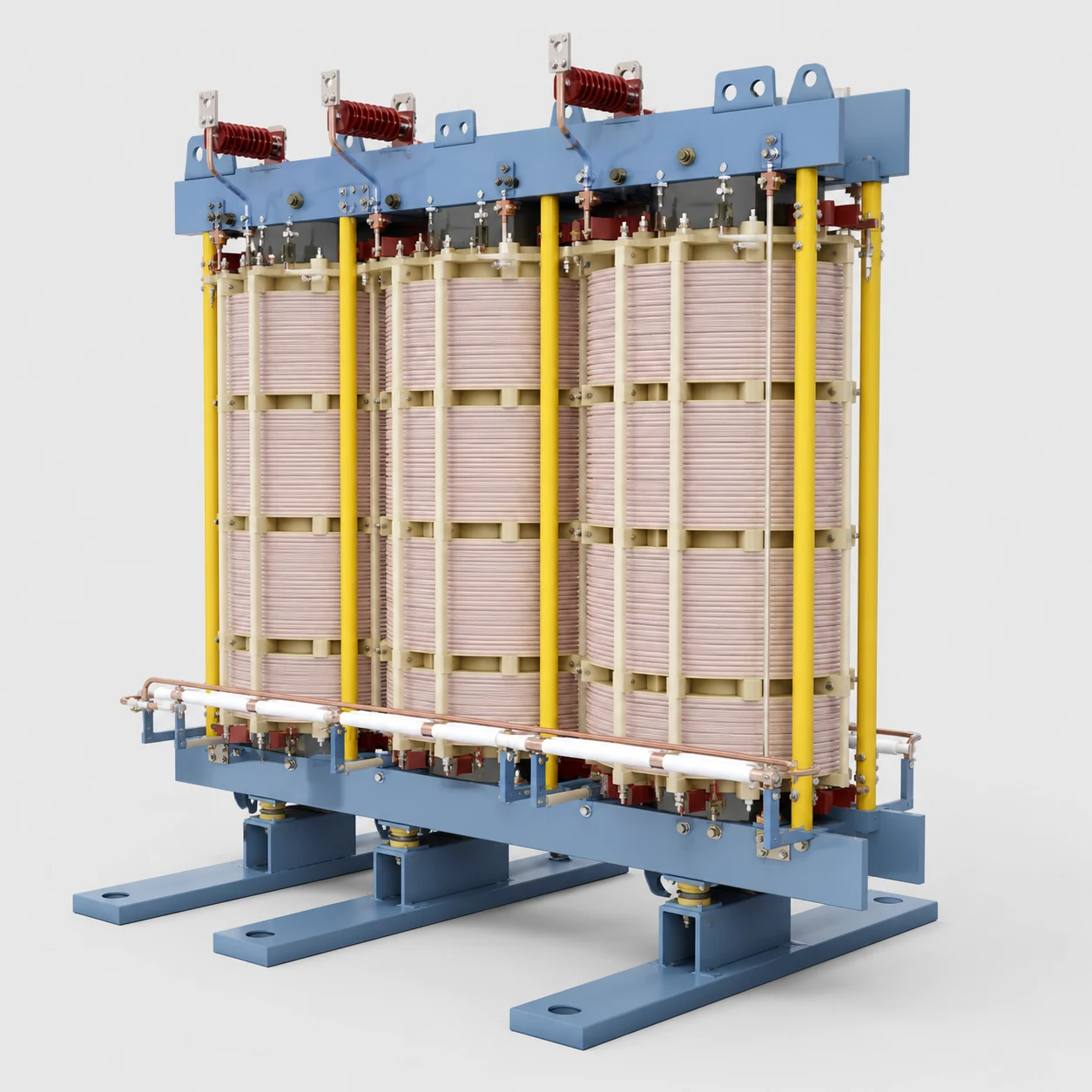

Configuration12 / 24 / 36 脉波及项目定制
Electrical design谐波附加损耗、温升与绕组平衡
Protection / controlNOMEX 耐热绝缘 / VPI 真空压力浸漆
Project definition整流器、控制与冷却系统
Final values are confirmed in the project technical agreement.
[ SYSTEM CAPABILITIES ]
Configured for dependable long-term operation
Application-led design
Equipment is configured around input, output, duty cycle, load behavior, and environmental conditions.
Thermal and insulation margin
Insulation class, conductor construction, and cooling are selected for dependable long-duration service.
Purposeful protection
Enclosures and electrical, temperature, and abnormal-state protection are matched to the installation.
System integration
Transformers, rectifiers, controls, and cooling can be engineered as one conversion system.
Serviceable construction
Mechanical layout, wiring, and monitoring support practical installation, inspection, and maintenance.
Engineering support
Capacity, pulse count, regulation accuracy, protection, and interfaces are confirmed against project data.
