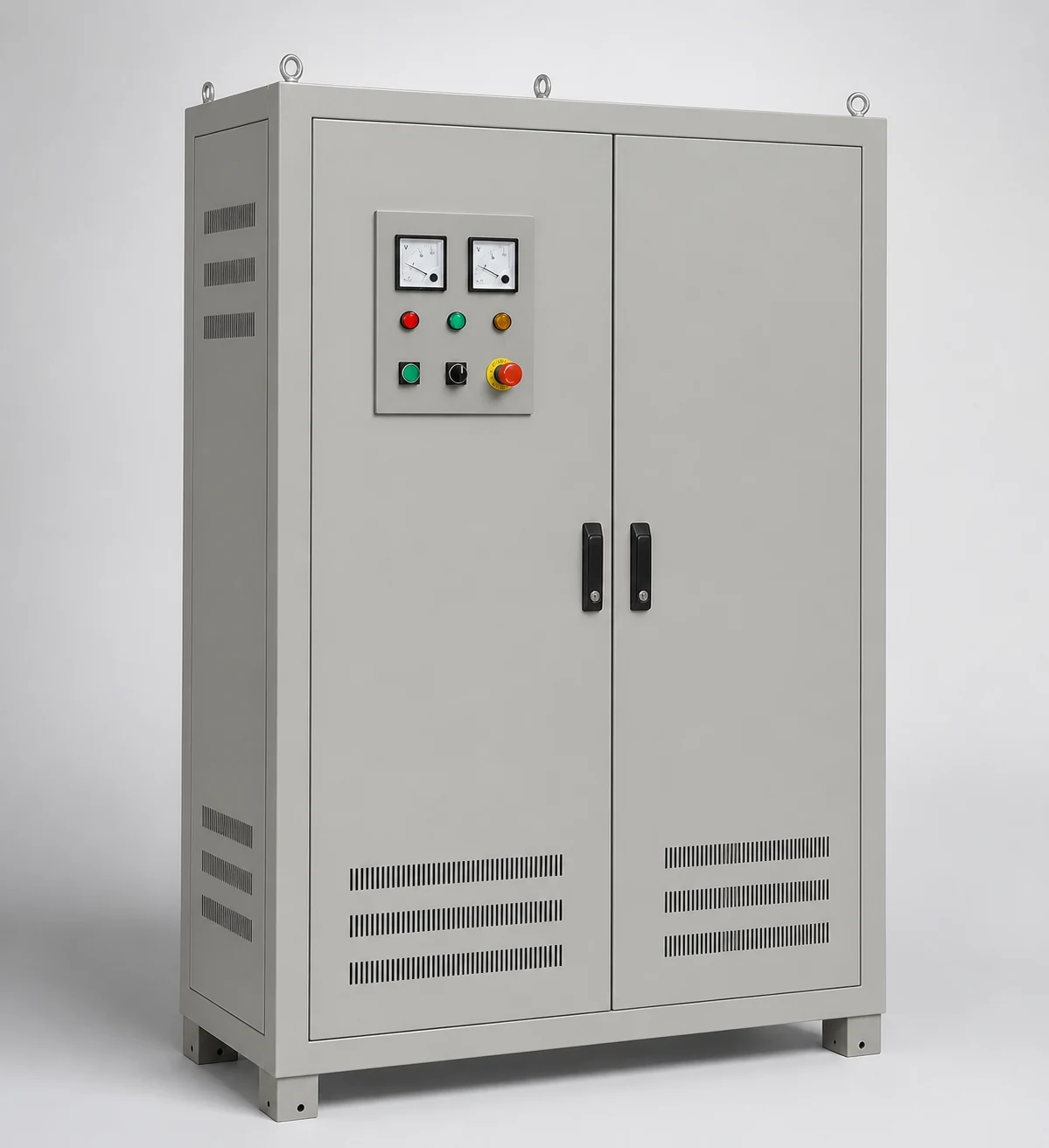

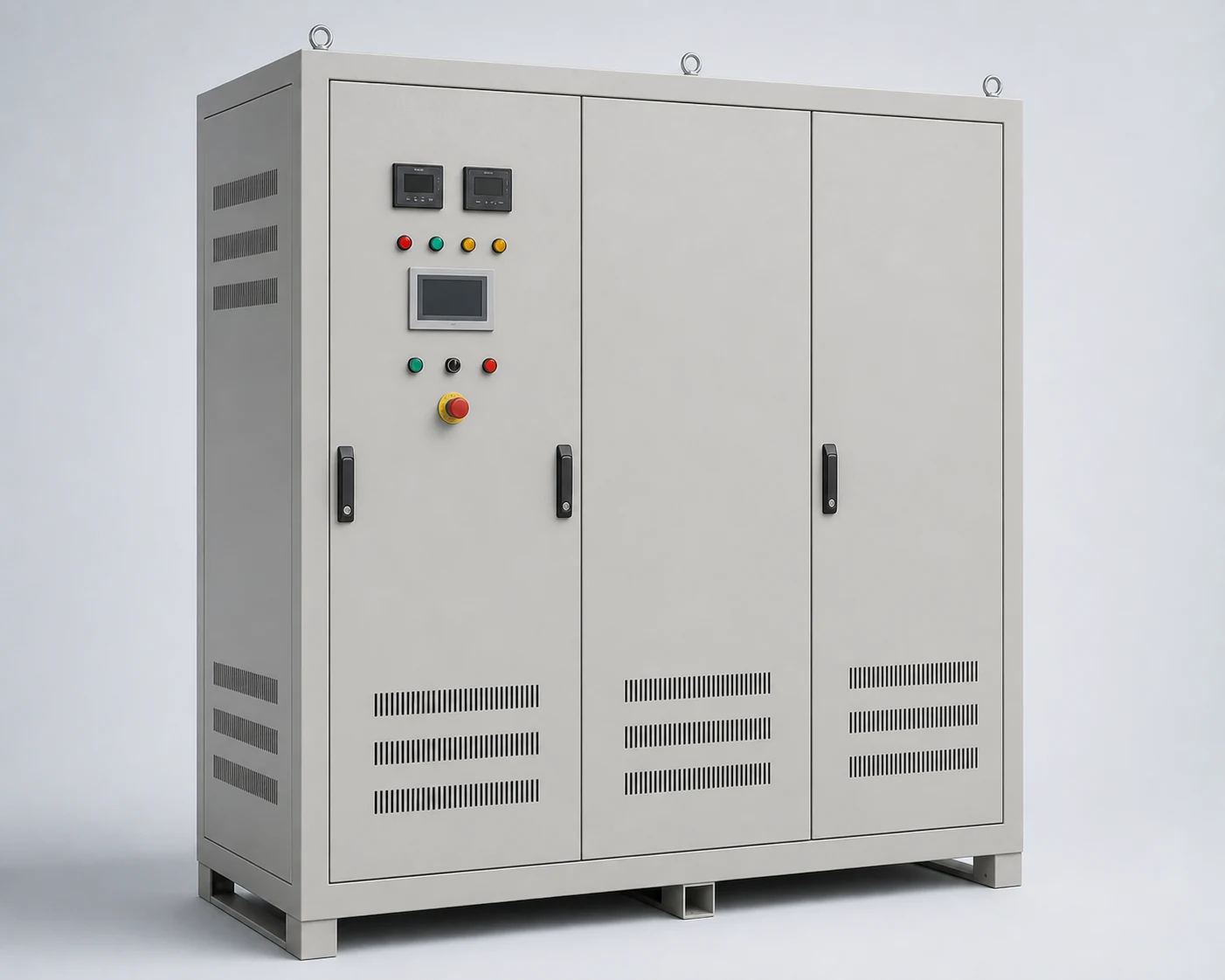

General Industrial Rectifier Equipment
Fixed or continuously regulated DC for different loads.
[ WHAT IT DELIVERS ]
A clear distinction between diode and thyristor rectification
Diode rectifiers provide straightforward DC conversion, while thyristor systems add continuous regulation, PLC monitoring, constant-current or constant-voltage control, and integrated protection.
DCDC output
CC / CVThyristor control modes
PLCMonitoring and protection
[ PLATFORM OVERVIEW ]
Similar enclosures, different control capability
Diode rectifiers provide straightforward DC conversion, while thyristor systems add continuous regulation, PLC monitoring, constant-current or constant-voltage control, and integrated protection.
Capacity, voltage, insulation, cooling, controls, protection, and interfaces are confirmed against project requirements before manufacture.
[ CONFIGURATIONS ]
02 — Alternative configuration

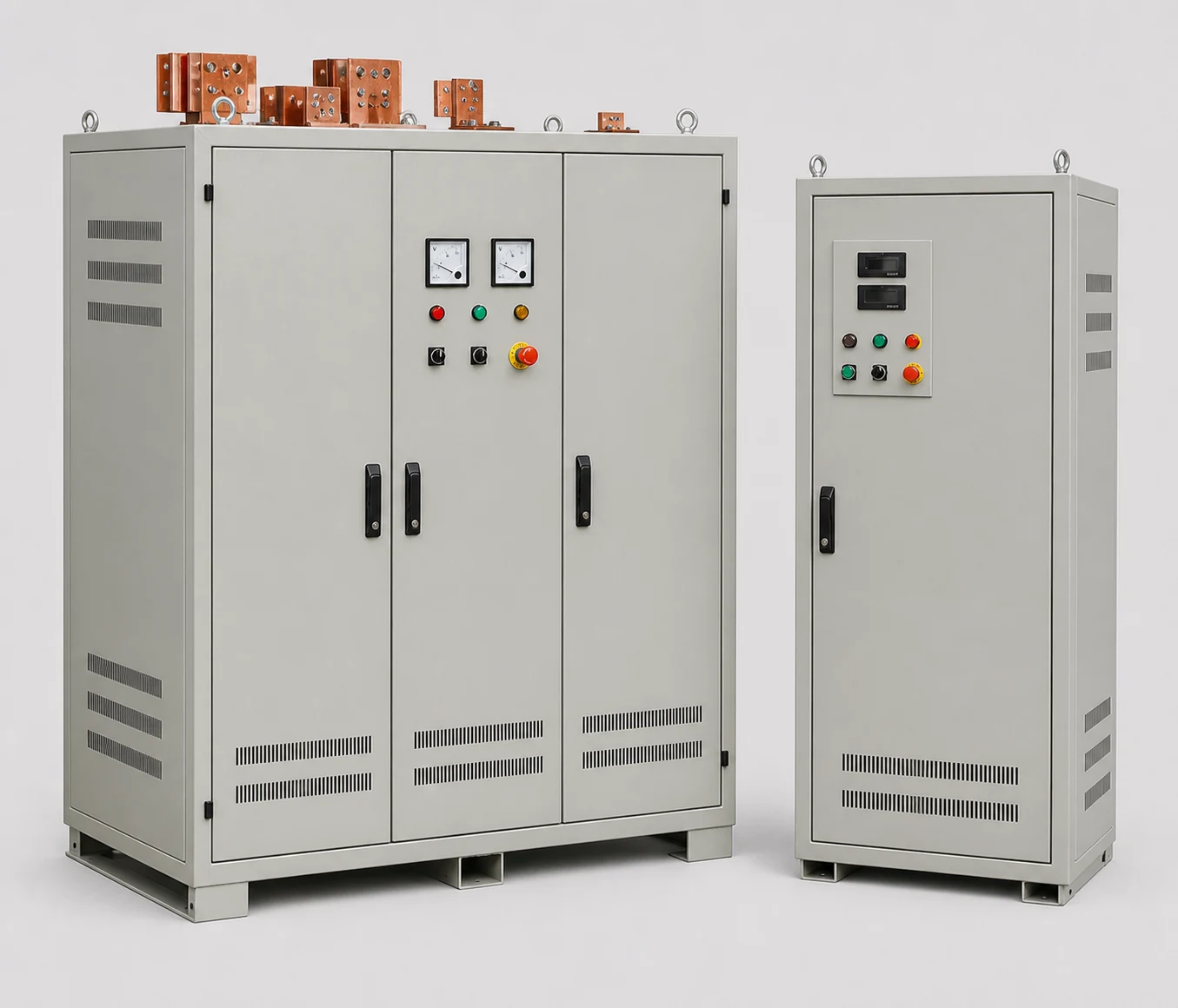

Industrial thyristor rectifier cabinet
An alternative configuration for different regulation, insulation, control, cooling, or protection requirements.[ SPECIFICATIONS ]
Product Specifications
Application一般工业用硅整流器 / 可控硅整流器
Configuration充电、表面处理、化工与一般工业直流负载
Electrical design二极管固定整流 / SCR 连续调节
Protection / control仪表监测、恒流恒压、缺相、过流、过压、超温
Project definition整流变压器、PLC 与冷却系统
Final values are confirmed in the project technical agreement.
