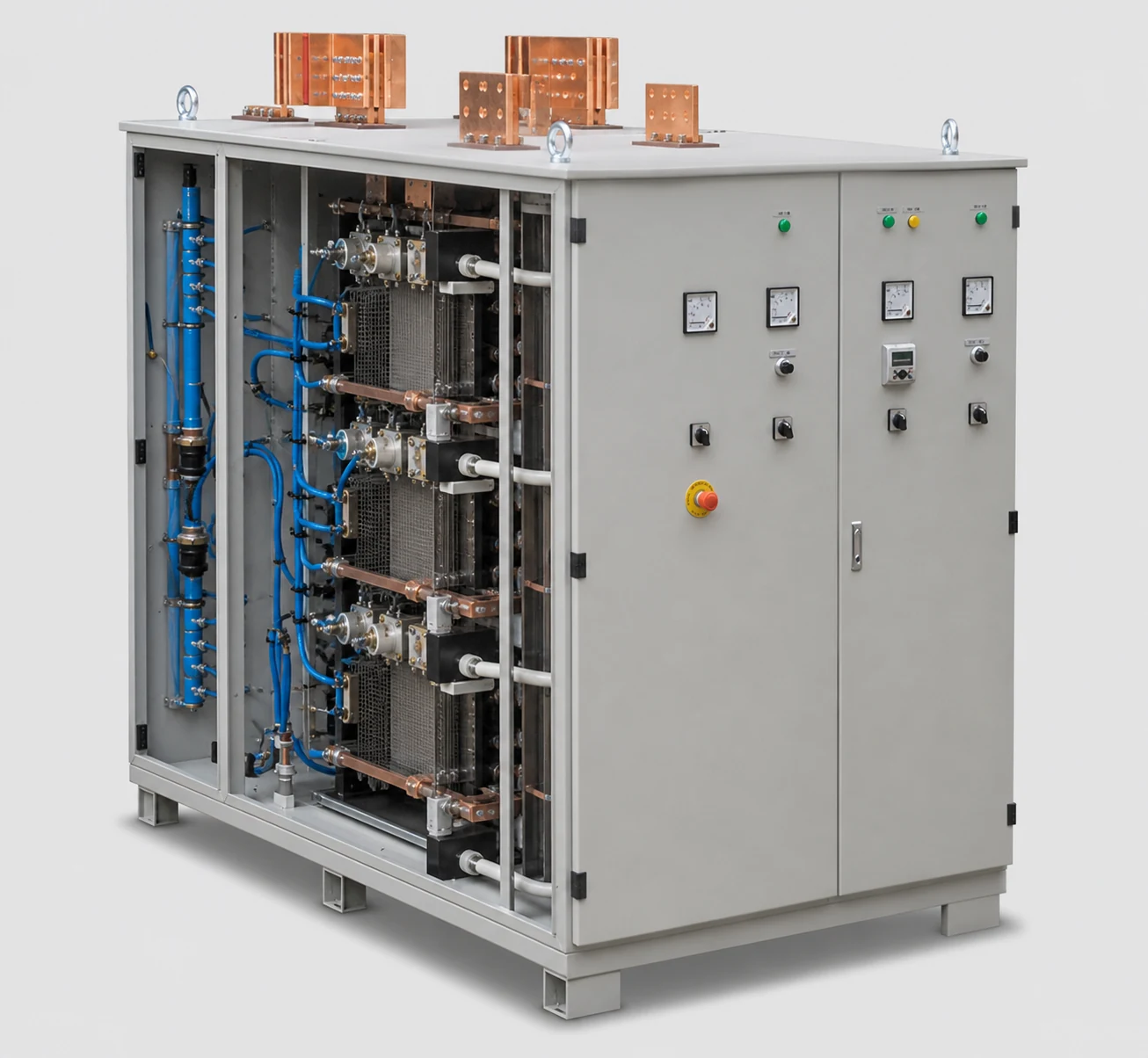

01 — Primary configuration
[ High-current process power ]

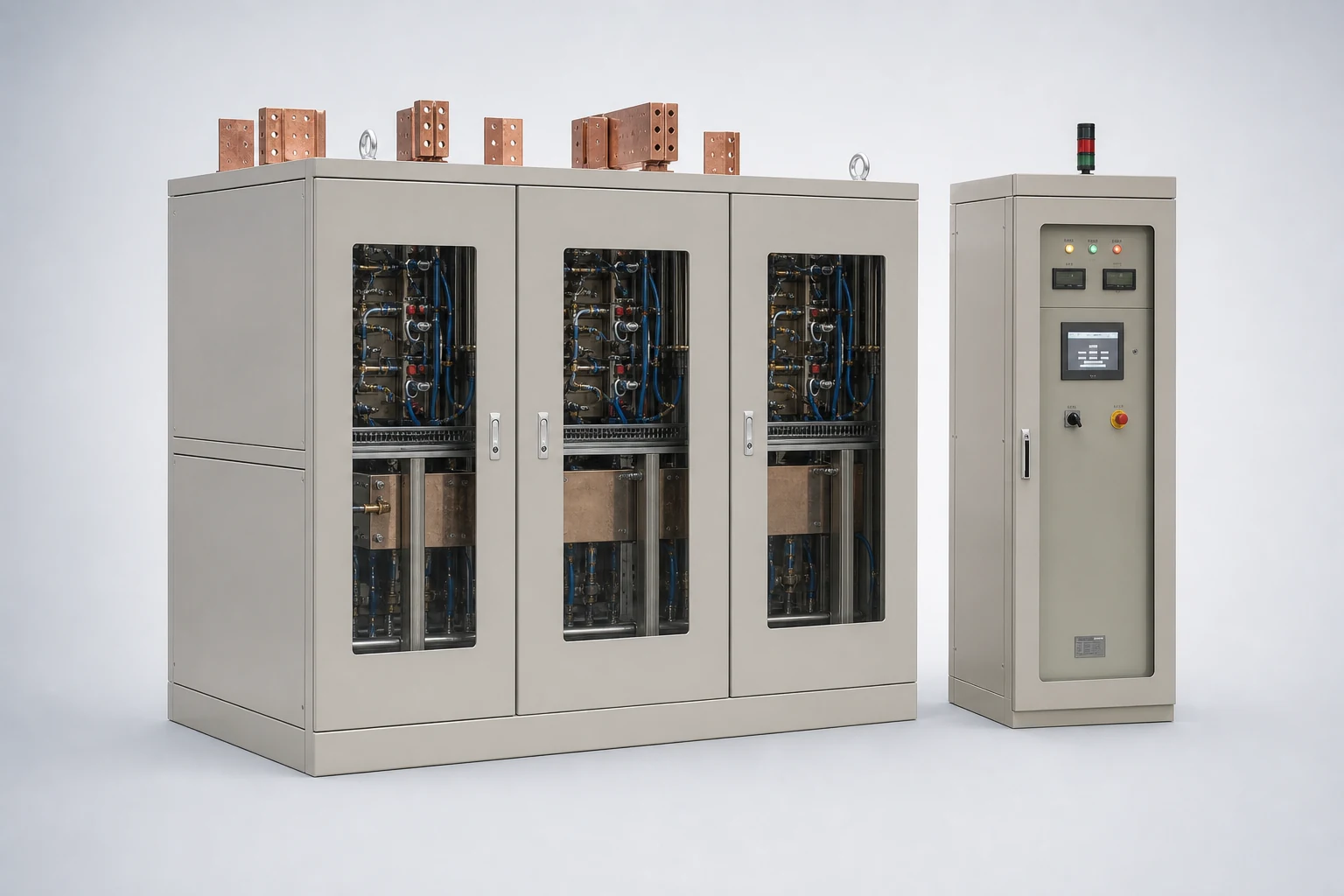

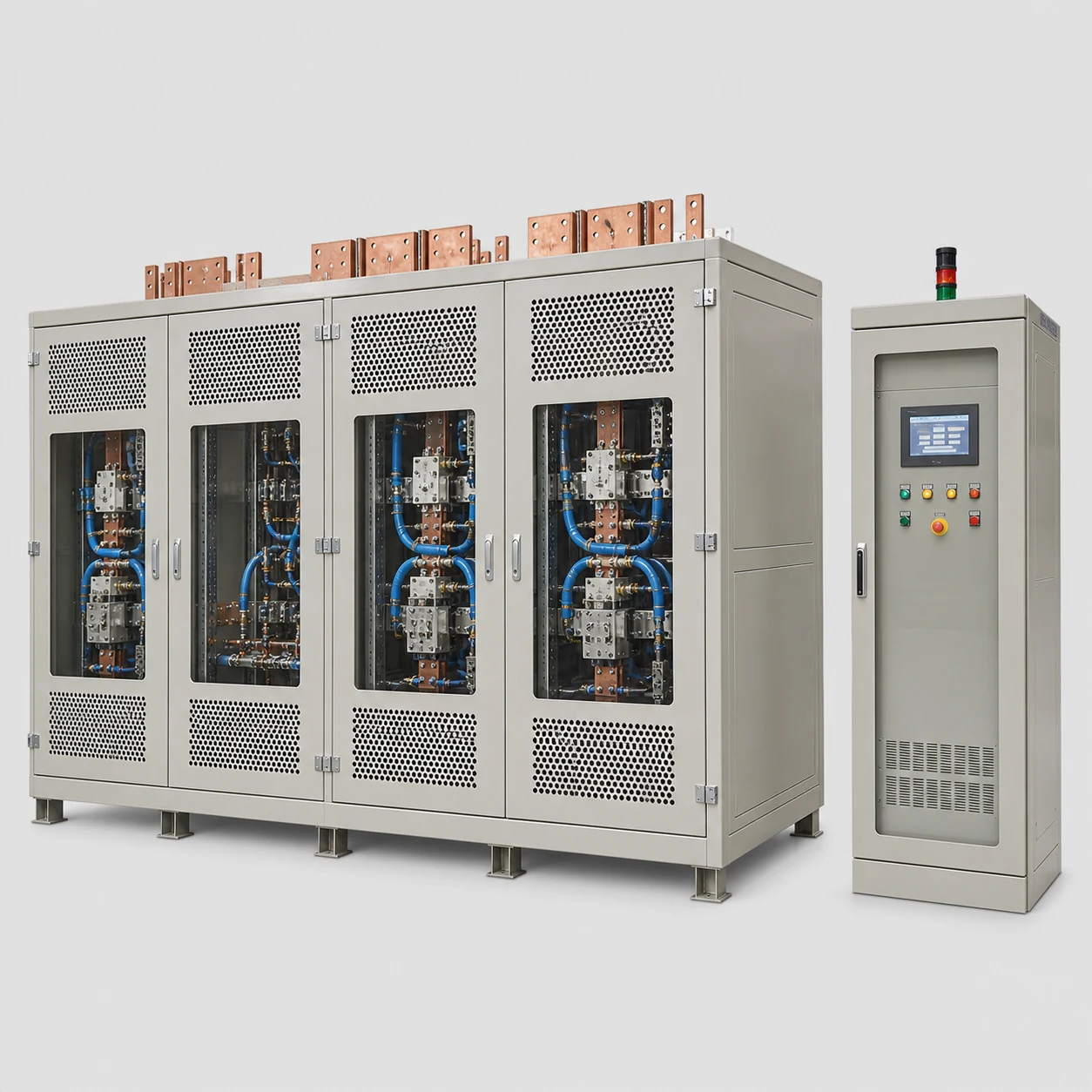

Electrolysis Rectifier Equipment
Complete DC systems for electrolysis, plating, and chemical processes.
[ WHAT IT DELIVERS ]
Main power, controls, cooling, and protection engineered as one system
Fixed silicon rectifiers cover stable high-current duties, while thyristor systems add continuous regulation and process integration for demanding production lines.
kAHigh-current output
24/7Continuous duty
PLCProcess integration
[ PLATFORM OVERVIEW ]
Power and control cabinets configured for process duty
Fixed silicon rectifiers cover stable high-current duties, while thyristor systems add continuous regulation and process integration for demanding production lines.
Capacity, voltage, insulation, cooling, controls, protection, and interfaces are confirmed against project requirements before manufacture.
[ CONFIGURATIONS ]
02 — Alternative configuration

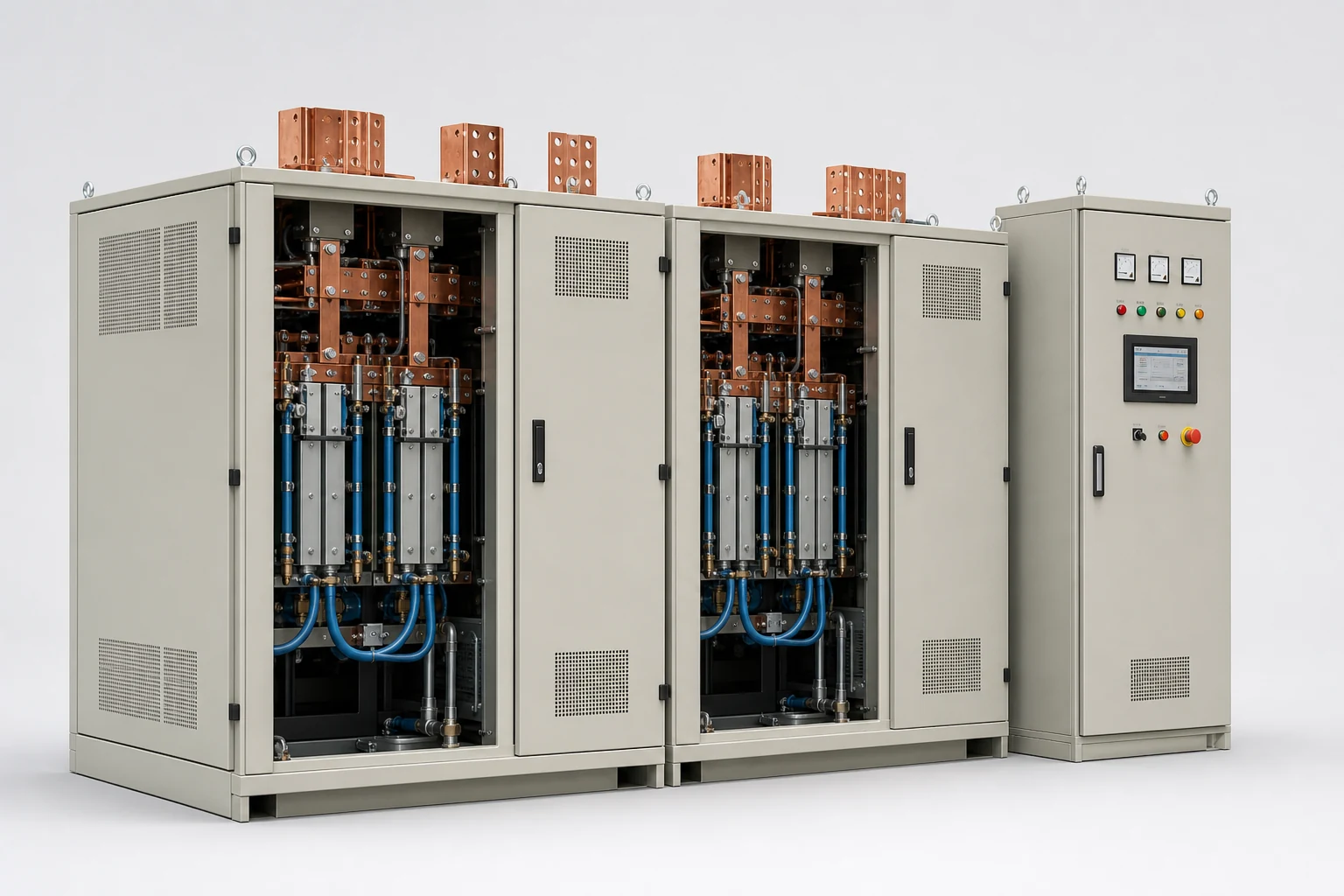

Thyristor electrolysis rectifier system
An alternative configuration for different regulation, insulation, control, cooling, or protection requirements.[ SPECIFICATIONS ]
Product Specifications
Application电解用硅整流器 / 电解用可控硅整流器
Configuration电解、电镀、化工、金属处理
Electrical design主功率柜、控制柜、母排与冷却系统
Protection / control固定输出 / SCR 连续恒流恒压调节
Project definition直流电压、电流、纹波、工作制、冷却与联锁
Final values are confirmed in the project technical agreement.
[ SYSTEM CAPABILITIES ]
Configured for dependable long-term operation
Application-led design
Equipment is configured around input, output, duty cycle, load behavior, and environmental conditions.
Thermal and insulation margin
Insulation class, conductor construction, and cooling are selected for dependable long-duration service.
Purposeful protection
Enclosures and electrical, temperature, and abnormal-state protection are matched to the installation.
System integration
Transformers, rectifiers, controls, and cooling can be engineered as one conversion system.
Serviceable construction
Mechanical layout, wiring, and monitoring support practical installation, inspection, and maintenance.
Engineering support
Capacity, pulse count, regulation accuracy, protection, and interfaces are confirmed against project data.
