01 — Primary configuration
[ Marine power equipment ]

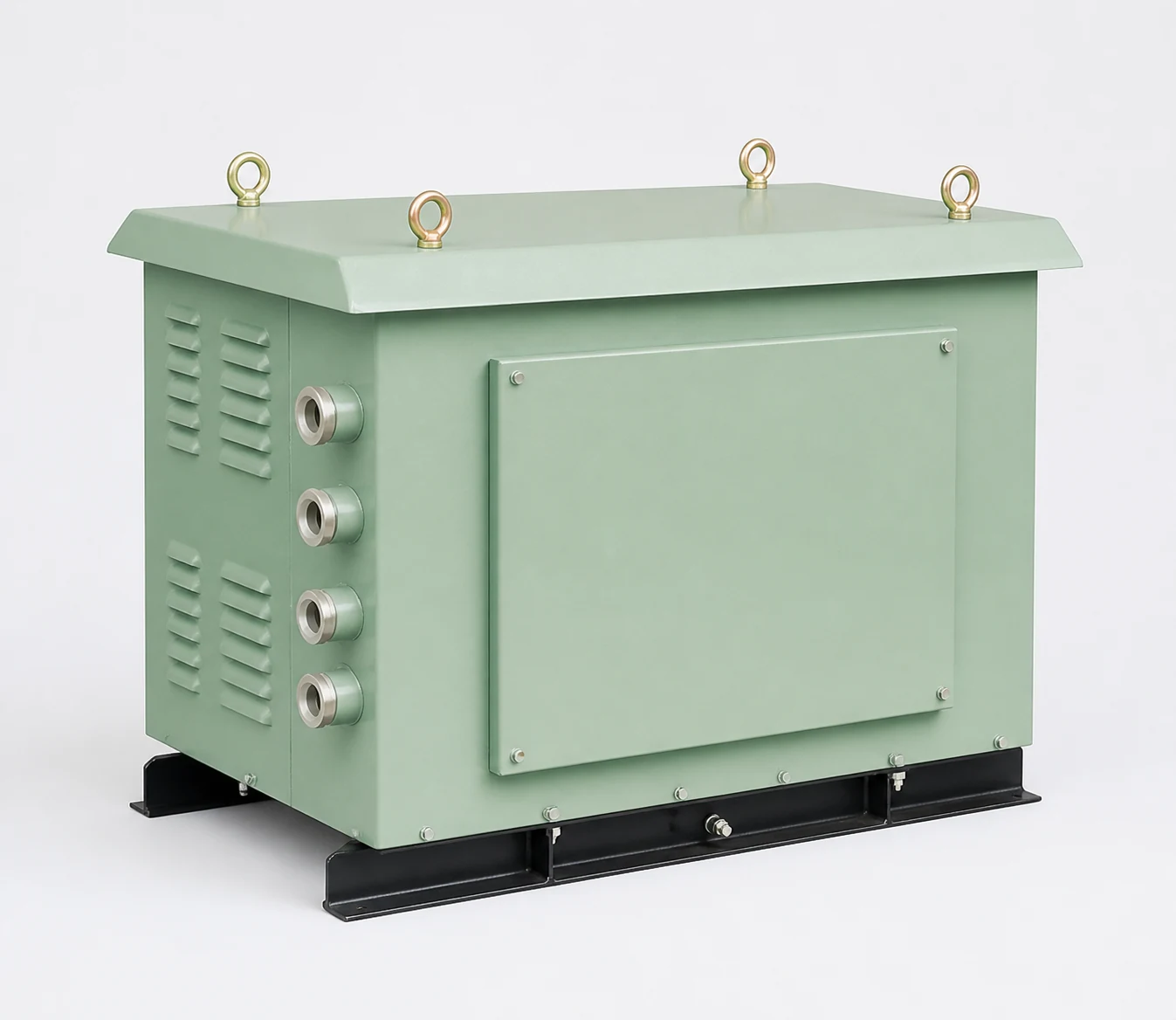

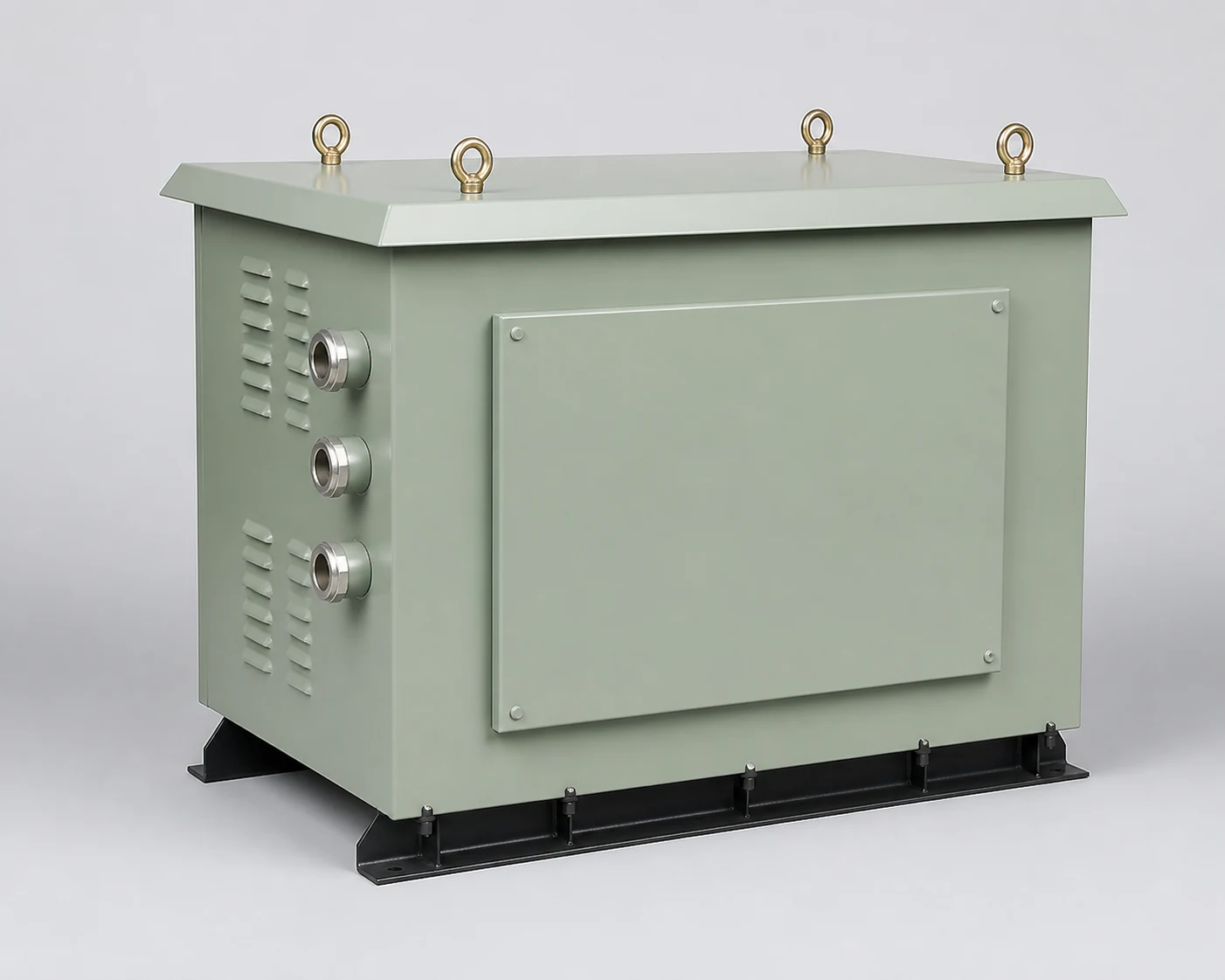

Marine and Naval Transformers
Stable distribution for long-term service at sea.
[ WHAT IT DELIVERS ]
Reliable isolation, voltage conversion, and distribution for shipboard systems
Waterproof and drip-proof marine transformers are designed to IEC 92 requirements and configured around onboard conditions, distribution arrangements, and load behavior.
IEC 92Design basis
B / F / HInsulation classes
3Product ranges
[ PLATFORM OVERVIEW ]
Real construction for marine electrical environments
Waterproof and drip-proof marine transformers are designed to IEC 92 requirements and configured around onboard conditions, distribution arrangements, and load behavior.
Capacity, voltage, insulation, cooling, controls, protection, and interfaces are confirmed against project requirements before manufacture.
[ CONFIGURATIONS ]
02 — Alternative configuration

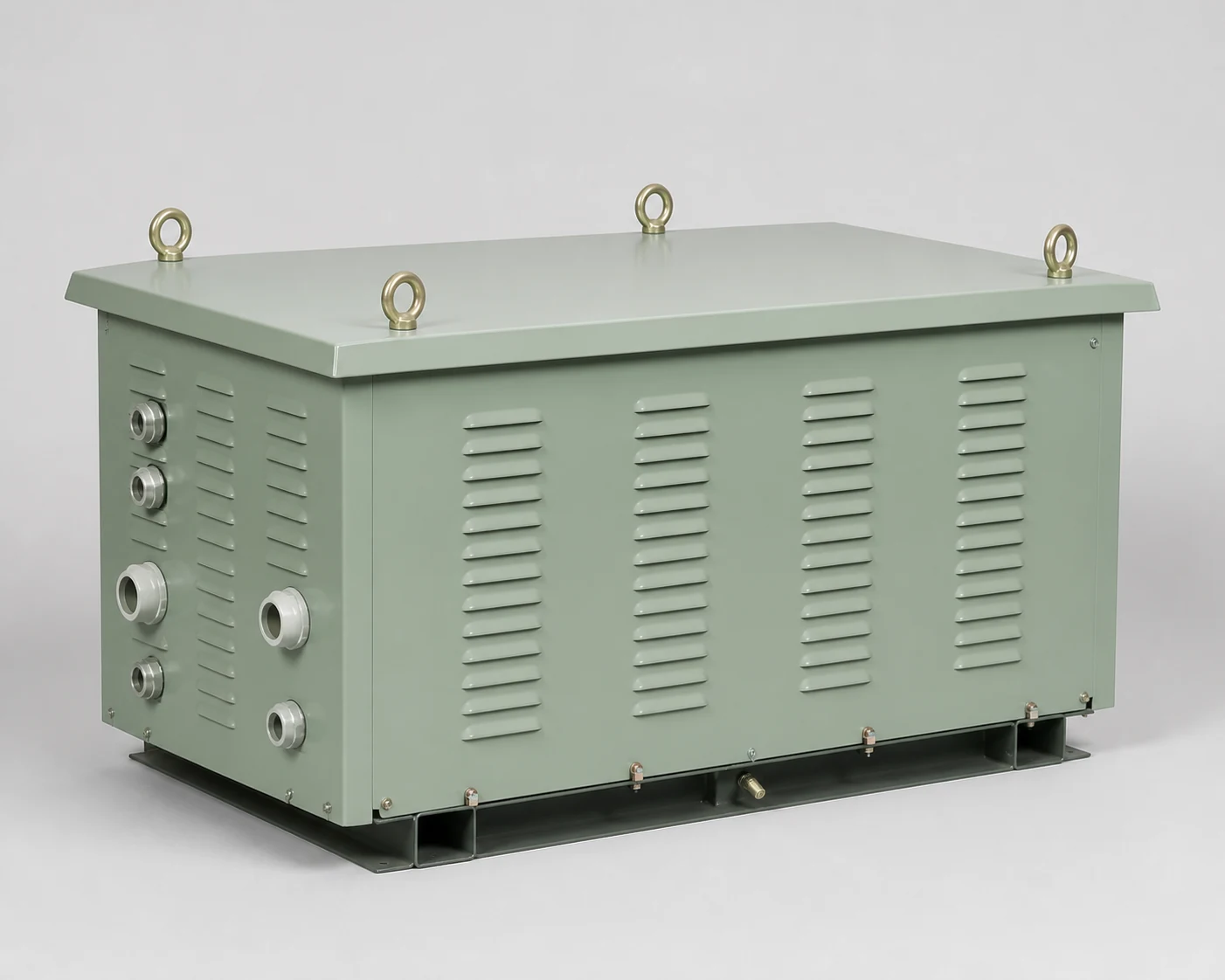

Drip-proof CSGD / CSD ranges
An alternative configuration for different regulation, insulation, control, cooling, or protection requirements.[ SPECIFICATIONS ]
Product Specifications
Application船舶与舰艇配电、隔离、辅助供电
ConfigurationIEC Publication 92 系列要求
Electrical designB、F 或 H 级
Protection / control防水式 / 防滴式
Project definition按容量、电压、频率、接线与环境条件设计
Final values are confirmed in the project technical agreement.
[ SYSTEM CAPABILITIES ]
Configured for dependable long-term operation
Application-led design
Equipment is configured around input, output, duty cycle, load behavior, and environmental conditions.
Thermal and insulation margin
Insulation class, conductor construction, and cooling are selected for dependable long-duration service.
Purposeful protection
Enclosures and electrical, temperature, and abnormal-state protection are matched to the installation.
System integration
Transformers, rectifiers, controls, and cooling can be engineered as one conversion system.
Serviceable construction
Mechanical layout, wiring, and monitoring support practical installation, inspection, and maintenance.
Engineering support
Capacity, pulse count, regulation accuracy, protection, and interfaces are confirmed against project data.
